Specifications

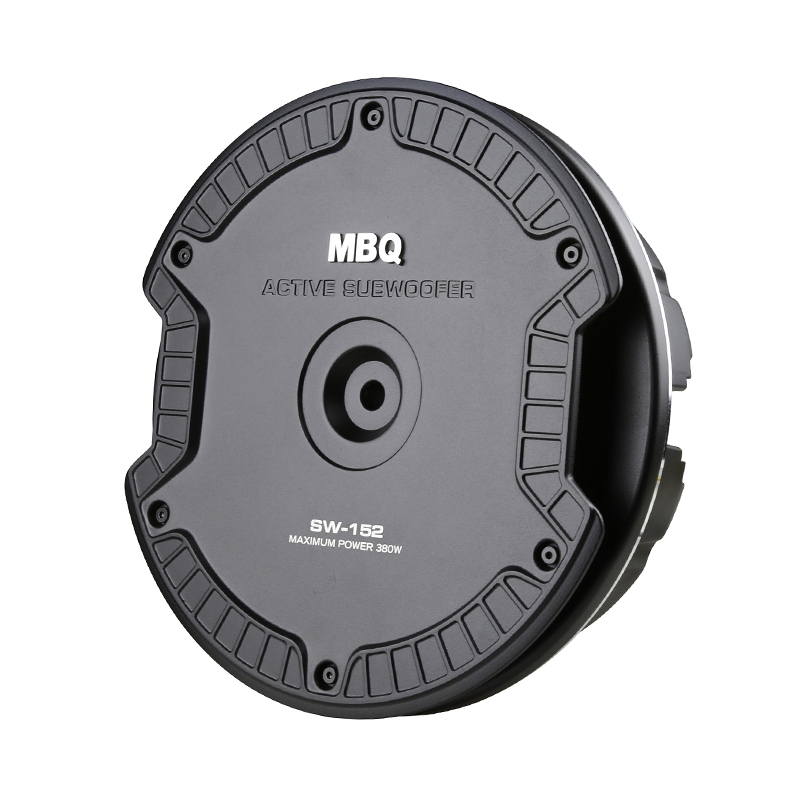

| Model | SW-152 |
| Woofer Speaker Size | Dual 5.3"x8.4"(214.5mmx135mm) |
| Max Output Power | 380W |
| RMS Output Power | 200W |
| Built-in Amplifier Type | Class AB |
| Impedance | Dual 2.2 Ω+2.2Ω |
| Frequency Response | 50Hz-150Hz |
| Variable Crossover Frequency | 50Hz-100Hz |
| Working Voltage | 14.4V(10-16V) |
| Phase Switch | 0°/180° |
| Fuse | 10A |
| Auto Turn ON/OFF | √ |
| Input Level | Speaker and RCA level inputs |
| Woofer Speaker Cone | Aluminum |
| Woofer Speaker Magnet | Ferrite |

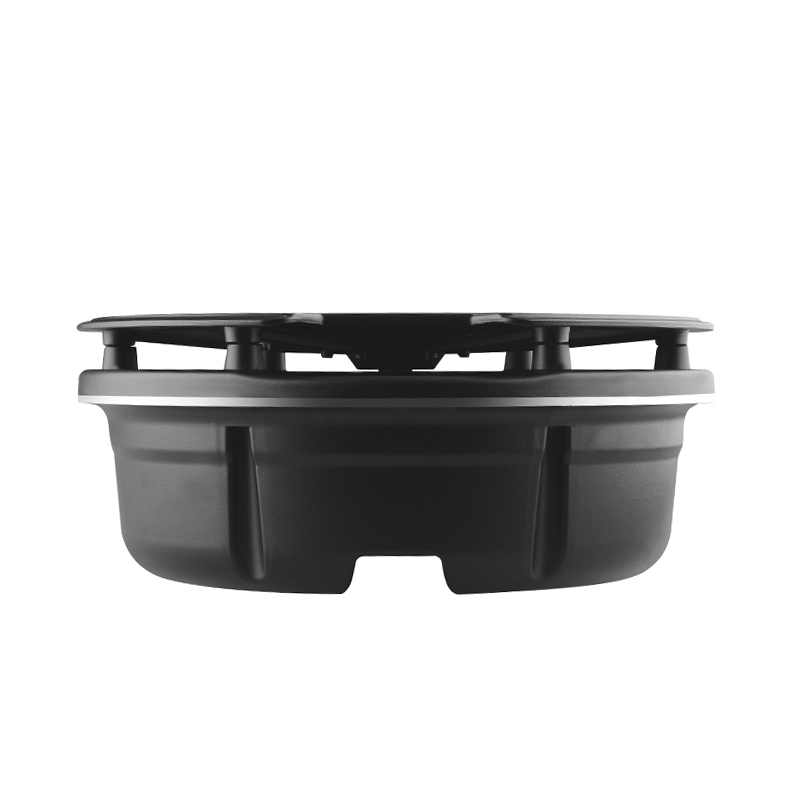

| Subwoofer Enclosure | Cast Aluminum Sealed Enclosure |

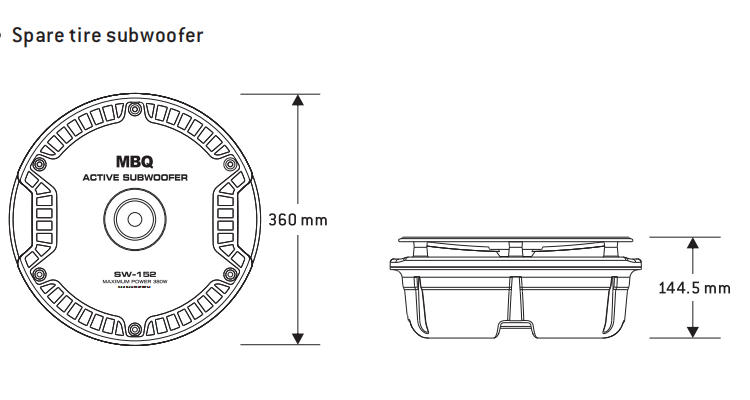

| Product Dimensions | Φ360mm x H144.5mm |
| Net Weight | 7.3kg |
Installation

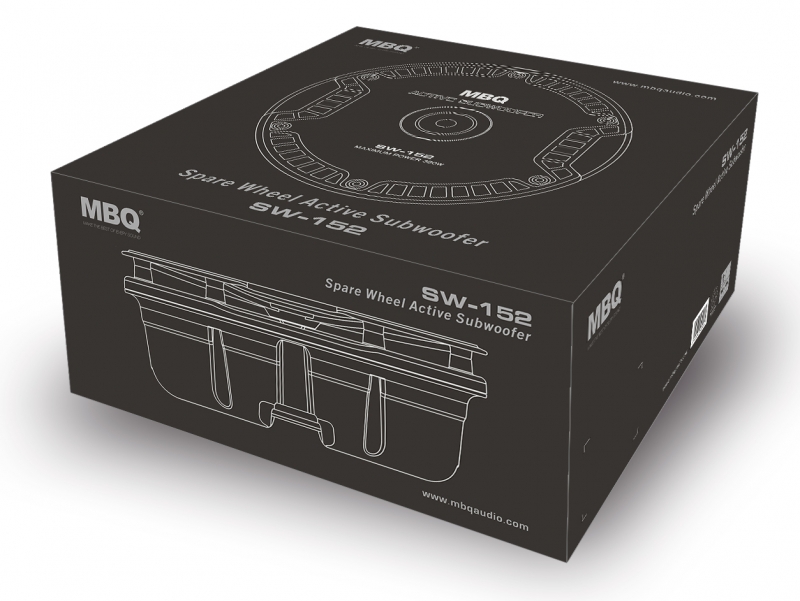

Packaging
